Gemi Sahibi
Adamar Shipping LtdCompany IMO 6049417
80 Broad Street Monrovia Liberia
Gemi Yönetimi
Adakent Gemi İşletmeciliği ve Tic. Ltd. Şti.Company IMO 5810421
Barbaros Mh. Al Zambak Sk. Varyap Meridian Grand Tower A-Blok No:2 D:159 Ataşehir – İSTANBUL
Tic. Sic. No: 931392 Kozyatağı V.D. : 007 062 4009
| SHIP’S NAME |

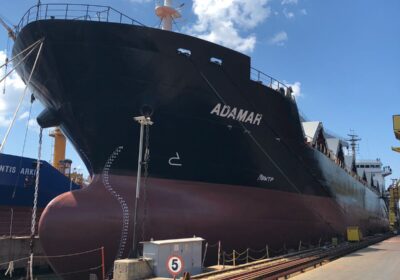

ADAMAR |
| EX.NAME |
SILDA |
| CALL SIGN |
D 5 R F 8 |
| PORT OF REGISTERY FLAG |
MONROVIA |
| BUILD PLACE / YEAR |
ÇİN / 2009-07 |
| IMO NO |
9515280 |
| MMSI NO |
636018756 |
| CLASS / NO |
B / V |
| P&I |
SSM STEAMSHIP MUTUAL |
| HULL&MACHINERY |
ALIANZ GROUP |
| TYPE OF SHIP |
MULTIPURPOSE DRY CARGO |
| SEA SPEED/CONSP |
BALLAST 11 KTS /14 MTN |
|
LOADED 10,5 KTS / 15 MTN |
|
| L.O.A. |
147.55 M |
| L.B.P. |
139.3 M |
| MOULDED DEPTH/BREATH |
11.8 M/ 23.0 M |
| AIR DRAFT |
38.2 M |
| GRT |
11927 RT |
| NRT |
5507 RT |
| SUEZ GRT/ NRT |
|
| PANAMA GRT REG.NO |
|
| LIGHT SHIP |
5354 |
| T.P.C. |
29,97 |
| F.W.A. |
191 MM |
| TOTAL BALLAST CAP. |
7554.3 m3 |
| TOTAL F/O CAP. |
461.2 M³ |
| TOTAL D/O CAP. |
80.2 M³ |
| TOTAL L/O CAP. |
27.4 M³ |
| TOTAL FW CAP. |
238 M³ |
| PROPELLER |
FIXED RIGHT HANDED |
| FREEBOARD BALLAST LADEN |
7.95 M / 4.87 M |
| HATCH COVER |
MC GREGOR HYDROLIC |
| MAIN ENG.&POWER |
HYUNDAI 4320KW |
| GEN.& POWER |
3 X 350 KW50 HZ |
| BOW THRUST. POW. |
NIL |
| SHAFT GEN.& POW |
NIL |
| EMG.GEN.& POW |
99 KW |
| CRANES |
NO1-2-3 25 MTS |
|
|
|
| HOLDS DIMENSIONS |
NO1 FWD W5,58MxL25,91 M |
|
NO2 FWD W17,58MxL25,91M |
|
|
NO3 FWD W17,58MxL25,91M |
|
|
NO4 FWD W17,58MxL26.63M |
|
|
NO1 AFT W17.58MxH12.5M |
|
|
NO2 AFT W17,58MxH12.5M |
|
|
NO3 AFT W17,58MxH12.5M |
|
|
NO4 AFT W11.87MxH12.5M |
|
| HATCH DIMENSIONS |
NO1 19.34Mx17,50M |
|
NO2 19.34Mx17,50M |
|
|
NO3-4 19.34Mx17,50M |
|
|
|
|
| HOLD TANK TOP STR |
13 MT/M2 |
|
|
|
|
|
|
| HATCH TT |
1.50MT/M2 |
|
|
|
| MAIN DECK TT |
N/A |
|
|
|
| HOLD VENTILATION |
NO1 6 AIR CHANGES /H |
|
NO2 6 AIR CHANGES /H |
|
|
NO3-4 6 AIR CHANGES /H |
| LOAD LINE |
FREEBOARD |
DRAFT |
DISP. |
DEADWEIGH |
| SUMMER | 3,22 |
8,598 |
23015,01 |
17660,15 |
| TROP FW |
2,85 |
8,968 |
23541,883 |
18187,023 |
| FRESH WATER |
3,029 |
8,789 |
23014,039 |
17659,179 |
| TROPICAL |
3,041 |
8,777 |
23553,22 |
18198,36 |
| WINTER |
3,399 |
8,419 |
22479,63 |
17125,44 |
| COMPARTMENT |
GRAIN M³ |
GRAIN CBTF |
BALE M³ |
BALE CBTF |
| HOLD NO 1 |
5103 |
180207 |
5103 |
180207 |
| HOLD NO 2 |
5510 |
194580 |
5510 |
194580 |
| HOLD NO 3 |
5510 |
194580 |
5510 |
194580 |
| HOLD NO 4 |
5525 |
195109 |
5525 |
195109 |
| TOTAL | 21648 |
764476 |
21648 |
764476 |
