Ship Owner
Adasun Shipping LtdCompany IMO 6069061
80 Broad Street Monrovia Liberia
Ship Management
Adakent Gemi İşletmeciliği ve Tic. Ltd. Şti.Company IMO 5810421
Barbaros Mh. Al Zambak Sk. Varyap Meridian Grand Tower A-Blok No:2 D:159 Ataşehir – İSTANBUL
Tic. Sic. No: 931392 Kozyatağı V.D. : 007 062 4009

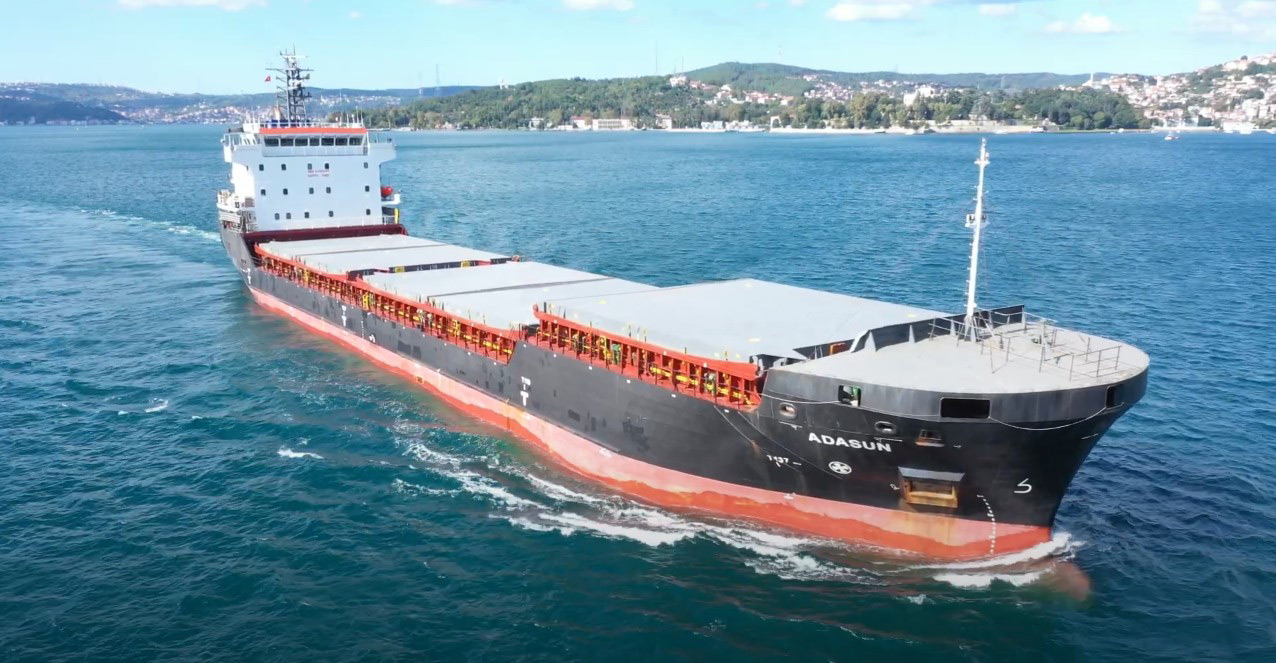

| SHIP’S NAME | ADASUN | SUEZ GRT/ NRT | 5742.88 RT/4670,48 RT |
| EX.NAME | CATALINA D | PANAMA GRT NET | 5478/4748 RT |
| CALL SIGN | D 5 Q T 9 | LIGHT SHIP | 2855,7 MT |
| PORT OF REGISTERY – FLAG | MONROVIA LIBERIA | T.P.C. | 17.95MT |
| BUILD PLACE / YEAR | JIANGSU YANGZIJIANG SY/Aug.2007 | F.W.A. | 154 MM |
| IMO NO | 9306445 | TOTAL BALLAST CAP. | 2526 M³ |
| MMSI NO | 6360 18662 | TOTAL F/O CAP. | 380 M³ |
| CLASS / NO | B / V – | TOTAL D/O CAP. | 51 M³ |
| P&I | THE LONDON P&I CLUB | TOTAL L/O CAP. | 24 M³ |
| HULL& MACHINERY | ANADOLU SIGORTA | TOTAL FW CAP. | 83 M³ |
| TYPE OF SHIP | MULTI PURPOSE GENERAL CARGO | PROPELLER | PITCH |
| SEA SPEED/CONSP | BALLAST 11,2 KTS / 11 MTN LOADED 10,5 KTS / 10,5 MTN |
MAIN ENG.&POWER | MAN B&W 7S MC 26 2800 kW /250 RPM |
| L.O.A. | 108.28 M | HATCH COVER | MC GREGOR HYDROLIC |
| L.B.P. | 103.9 M | NO OF HATCH/HOLD | 3 / 3 |
| MOULDED DEPTH/BREATH | 9.015 M/ 18.20 M | GEN.& POWER | 2x 390 KW |
| AIR DRAFT | 32.35 M | BOW THRUST. POW. | 280 KW / 380 HP |
| GRT | 5581 RT | SHAFT GEN.& POW | N/A |
| NRT | 2849 RT | EMG.GEN.& POW | 315 KW |
| HOLDS DIMENTIONS | NO1 18.8 x15.18 | NO2 29,4×15.18 | NO3 27,9×15.18 | HOLD TTS : 17,73MT/M2 |
| HATCH OPENING | NO1 17,5×15,18 | NO2 25,9×15,18 | NO3 25,2×15,18 | HATCHCOVER TTS : 2,5MT/M2 |
| CARGO HOLDS SQUARE M2 | NO1 213,8m2 | NO2 377,7 m2 | NO3 377,7 m2 | TOTAL SQ M2 1036,5m2 |
| HEIGHT TO HATCH COVER BOTTOM | NO 1 : 11,01 M | NO 2 : 9,20M | NO 3 : 9.20M |
| LOAD LINE | FREEBOARD(M) | DRAFT(M) | DISP.(T) | DEADWEIGH(T) |
| SUMMER | 1.977 | 7.038 | 11091.05 | 8259.25 |
| TROP FW | 1.676 | 7.339 | 11381.98 | 8550.18 |
| FRESH WATER | 1.823 | 7.192 | 11106.95 | 8275.15 |
| TROPICAL | 1.830 | 7.185 | 11371.23 | 8539.43 |
| WINTER | 2.124 | 6891 | 10812.76 | 7980.96 |
| COMPARTMENT | GRAIN M³ | GRAIN CBTF | BALE M³ | BALE CBTF |
| HOLD NO 1 | 2713,99 | 95843,33 | 2713,99 | 95843,33 |
| HOLD NO 2 | 3903,12 | 137836,92 | 3903,12 | 137836,92 |
| HOLD NO 3 | 3709,06 | 130983,78 | 3709,06 | 130983,78 |
| TOTAL | 10326,17 | 364664,03 | 10326,17 | 364664,03 |
